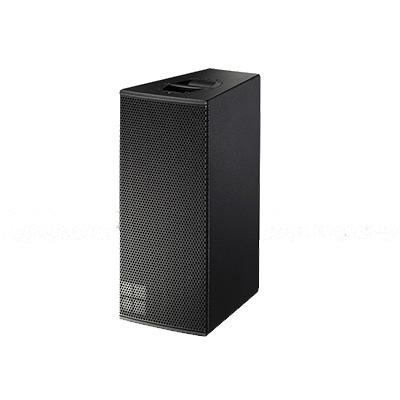

The 3-way passive V7P and Vi7P loudspeakers feature two 10" drivers in a dipole arrangement with a horn loaded 8" MF driver and a 1.4" exit compression driver mounted onto a rotatable CD horn. The Vi7P is the installation version of the V7P loudspeaker and differs only in cabinet construction, finish and mounting hardware. The innovative horn design for the centrally mounted 8" MF driver produces a remarkable sensitivity resulting in an exceptional performance in the vocal range. An advanced bass-reflex and venting design delivers an extended LF output with full bandwidth capabilities.
These high performance point source loudspeakers provide a broad variety of deployment possibilities, especially when used as a stand-alone full range system, or combined with other elements from the V-Series, either ground stacked or flown. The HF horn can be rotated by 90° to enable horizontal orientation. The loudspeaker cabinets are constructed from marine plywood, the V7P has an impact and weather protected PCP (Polyurea Cabinet Protection) finish, while the Vi7P has an impact resistant paint finish. The front of the loudspeaker cabinets are protected by a rigid metal grill. The V7P cabinet incorporates a pair of handles. M10 threaded inserts are provided for attaching d&b rigging hardware.
System data
Frequency response (–5 dB standard)............................... 59 Hz - 18 kHz
Frequency response (–5 dB CUT mode)..........................100 Hz - 18 kHz
Max. sound pressure (1 m, free field).........................................................
with D12/30D/D20...........................................................................137 dB
with D80..........................................................................................140 dB
Input level (100 dB SPL/1 m)........................................................–17 dBu
Loudspeaker data
Nominal impedance........................................................................8 ohms
Power handling capacity (RMS/peak 10 ms)..........................500/2000 W
Nominal dispersion angle (h x v)................................................ 75° x 40°
Components................................2 x 10" driver with neodymium magnet
..................................................... 1 x 8" driver with neodymium magnet
...............................................................1 x 1.4" exit compression driver
.......................................................................passive crossover network
Connections V7P...............................................................2 x NLT4 F/M
.................................................................... optional 2 x NL4 or 2 x EP5
Connections Vi7P.............................. 2 x NL4 and screw terminal block
