  • MVR-64 Multiverter
  • General Description

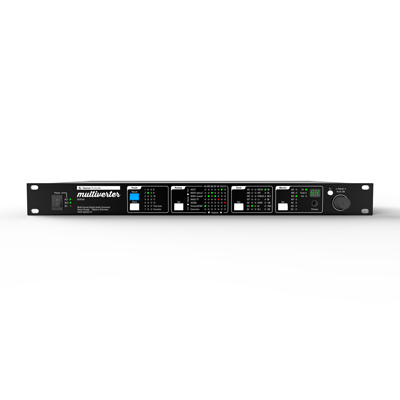

    The MVR-64 multiverter is a versatiledigital audio bridge, capable of translating between many digital audio formats. The device features matrixstyle any-to-any conversion with unmatched flexibility, including arbitrary channel-wise routing between all interfaces*.


    The integrated headphone preamp allows you to monitor any incoming signal, while the integrated test tone generator helps you troubleshooting even the most complex setups. Twelve preset memories let you store or recall your desired setup in no time.

  • Product Features

    Latency
    Fixed latency: 2 Samples@48kHz
    (plus interface-inherent latency)


    Channels / Samplerates
    64x64ch@32/44.1/48kHz
    32x32ch@64/88.2/96kHz
    16x16ch@128/176.4/192kHz
    Samplerate converter as add-on module*


    Clock source
    Any of the audio interfaces or internal clock master (32...192kHz)


    Headphones output
    Any channel from any input (mono or stereo), able to drive high impedance


    Testtone
    1kHz -20dB sine wave on all outputs


    Triple redundant power supply
    2x 90-240VAC 50-60Hz
    1x DC 9-18V (external battery)


    Mechanical
    1U aluminum rack case, 200mm deep
