Shure

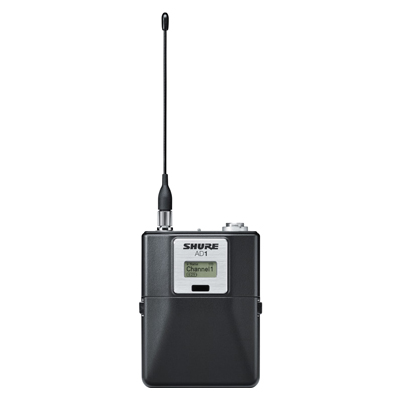

  • AD1 Bodypack Transmitter
  • General Description

    AD series bodypack transmitters deliver impeccable audio quality and RF performance with wide-tuning,



    High Density (HD) mode, and encryption. Features durable metal construction, AA or SB900A rechargeable power (with dockable charging), and TA4 or LEMO3 connector options.



    With breakthrough RF performance and wide tuning up to 184 MHz, the AD series wireless bodypack transmitter puts professional quality digital audio within reach.

  • Product Features

    ■ Two transmission modes:

    - Standard for optimal coverage

    - New High Density mode for maximum system channel count and robust coverage

    ■ Encryption-enabled, secure transmission

    ■ External contacts for docked charging

    ■ AA or SB900A Li-ion rechargeable batteries

    ■ Detachable 1⁄4 wave antenna

    ■ LEMO3 and TA4 connector options



    Specifications



    Gain Offset Range                                                       –12 to 21 dB (in 1 dB steps)

    Battery Type                                                              Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V

    Battery Runtime (@ 10 mW)                                        Shure SB900A: up to 9 hours

                                                                                      Alkaline: up to 8 hours (See Battery Runtime Chart)

    Dimensions                                                                  86 mm x 66 mm x 23 mm (3.4 in. x 2.6 in. x 0.9 in.) H x W x D

    Weight                                                                        142 g (5.0 oz.), without batteries

    Housing                                                                       Cast Aluminum



    Audio Input

    Connector (See drawing for details)                            4-Pin male mini connector (TA4M)

                                                                                   LEM03 connector

    Configuration                                                            Unbalanced

    Impedance (See drawing for details)                           1 MΩ

    Maximum Input Level (1 kHz at 1% THD)                    Pad Off: 8.5 dBV (7.5 Vpp)

                                                                                    Pad On: 20.5 dBV (30 Vpp)

    Preamplifier Equivalent Input Noise (EIN) (System Gain Setting ≥ +20)                           120 dBV, A-weighted, typical



    RF Output

    Connector                                                                 SMA

    Antenna Type                                                           1/4 wave

    Impedance                                                                50 Ω

    Occupied Bandwidth                                                  <200 kHz

    Modulation Type                                                        Shure Axient Digital Proprietary

    Power                                                                       2 mW, 10 mW, 35 mW (See Frequency Range and Output Power table, varies by region)
