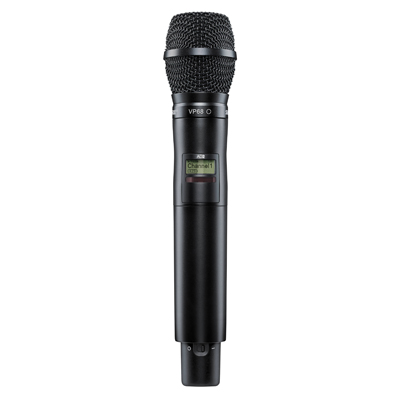

AD series hand-held transmitters deliver impeccable audio quality and RF performance with wide-tuning,High Density (HD) mode, and encryption.
Features durable metal construction, AA or SB900A rechargeable power (with dockable charging), and black or nickel finish options.
With breakthrough RF performance and wide tuning up to 184 MHz, the AD series wireless handheld transmitter puts professional quality digital audio within reach.
■ Two transmission modes:
- Standard for optimal coverage
- New High Density mode for maximum system channel count and robust coverage
■ Encryption-enabled, secure transmission
■ Frequency and power lockout
■ Rugged metal construction in black or nickel finish
■ External contacts for docked charging
■ AA or SB900A Li-ion rechargeable batteries
■ Backlit LCD with easy-to-navigate menu and controls
■ Low-profile, lockable power switch
■ Available cartridges: KSM8, KSM9HS, Beta® 87A/87C, Beta® 58, SM58®, VP68
Specifications
Gain Offset Range –12 to 21 dB
Battery Type Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Battery Runtime (@ 10 mW) Shure SB900A: > 11 hours
Alkaline: > 8 hours (See Battery Runtime Chart)
Dimensions 256 mm × 51 mm (10.1 in. × 2.0 in.) L × D
Weight 340 g (12.0 oz.), without batteries
Housing Cast Aluminum
Audio Input
Configuration Unbalanced
Maximum Input Level (1 kHz at 1% THD) 145 dB SPL, typical (SM58) (Note: dependent on microphone type)
RF Output
Antenna Type Integrated Single-Band Helical
Occupied Bandwidth <200 kHz
Modulation Type Shure Axient Digital Proprietary
Power 2 mW, 10 mW, 35 mW (See Frequency Range and Output Power table, varies by region)
