  • Y8 loudspeaker
  • General Description

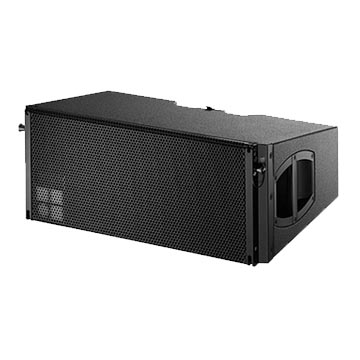

    The compact Y8 line array loudspeaker is designed for use in vertical columns. The 2-way passive design features two 8” drivers in a dipole arrangement and a centrally mounted 1.4” compression driver with a wave transformer. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These high performance line array modules offer 80° horizontal directivity controlled down to 500 Hz. The mechanical and acoustical design enables vertical arrays of up to twenty four loudspeakers with vertical splay angles from 0° to 14° with a 1° resolution. It can be used in columns of purely Y8 loudspeakers or combined with Y12 and/or Y-SUB cabinets. The loudspeaker cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel incorporates a handle while two additional recessed grips are provided at the rear. Three point rigging hardware is integrated into the loudspeaker enclosure.

  • Product Features

    System data

    Frequency response (-5 dB standard)                           60 Hz - 18 kHz

    Frequency response (-5 dB CUT mode)                        100 Hz - 18 kHz

    Max. sound pressure (1m, free field)

    with D6                                                                           134 dB SPL

    with D80                                                                         139 dB SPL

    Cabinets per channel D6/D80                                        2



    Loudspeaker data

    Nominal impedance                                                                   8 ohms

    Power handling capacity LF (RMS/peak 10 ms)                         400/1600 W

    Nominal dispersion angle (horizontal)                                       80°

    Splay angle settings                                                                    0 - 14° (1° increment)

    Components                                                                                2 x 8" driver with neodymium magnet

                                                                                                        1.4" exit compression driver

                                                                                                         passive crossover network

    Connections                                                                                 2 x NLT4 F/M

                                                                                                         optional 2 x NL4 or 2 x EP5



    Dimensions, weight

    Dimensions (H x W x D)                                                              257 x 630 x 375

    mm                                                                                              10 x 24.8 x 14.8 "

    Weight                                                                                         20.5 kg

                                                                                                         45 lb
