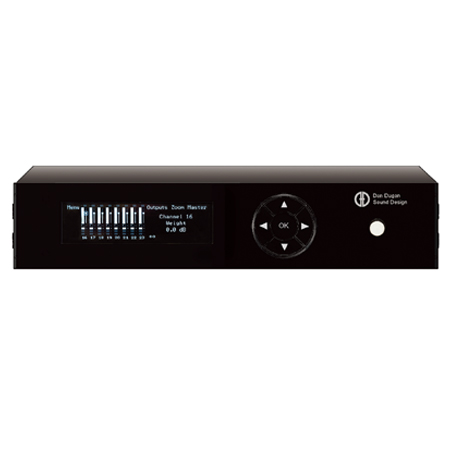

The Model N Automatic Mixing Controller helps professional audio mixers handle multiple live mics without having to continually ride their individual faders. The Model N have 64 channels of processing, accept primary and secondary Dante network connectors.Power over Ethernet (PoE) capable,and the standard Dugan can linking for larger systems or 16 channels ADAT I/O.Signal processor patches into the input insert points of an audio mixing console.
It detects which mics are being used and makes fast, transparent cross-fades, freeing the mixer to focus on balance and sound quality instead of being chained to the faders. The Model N voice-controlled crossfades track unscripted dialogue perfectly, eliminating cueing mistakes and late fade-ups while avoiding the choppy and distracting effects common to noise gates.
audio
dante i/o 64 channels @ 48 kHz sample rate
32 channels @ 96 kHz sample rate
adat i/o 16 channels
gain Unity
sample rate 48 – 96 kHz
bit depth 24 bit
audio latency < 1 ms
frequency response 10 Hz – 48 kHz, +/- 0.0075 dB @ 96 kHz
output noise -125 dBFS (20 Hz – 20 kHz), -128 dBAFS
distortion -125 dBFS
algorithms Dugan Speech System™, Dugan Music System™, Dugan Gain Limiting™
Linking Up to eight units can be linked into one system in an optical ring network
Connectors
audio i/o Dante: Two RJ-45, Primary and Secondary networks
ADAT: Two TOSLINK optical
word clock i/o Two BNC 75-Ohm
linking i/o Two TOSLINK optical
network Two RJ-45, one accepts PoE(internal switch)
power
connector Coaxial with locking collar, 5.5 mm o.d., 2 mm i.d., center positive
electrical Nominal 12 VDC, 1.0 A maximum (12 W); accepts 12-24 VDC
PoE 02.3af-2003-compliant powered device (PD)
external supply Input: 100-240 VAC, 50-60 Hz, 24W
Output: 18 V, 1.3 A
Approved: UL, GS, CE, FCC. LPS, CCC(S&E)
Physical
Dimensions 1 RU H= 1.75 in (4.5 cm) D = 8.3 in (21 cm) W = 8.75 in (22.2 cm)
Weight 3.4 lb (1.54 kg)
7 lb (2.5 kg) in shipping box with rack mounting kit and power supply
