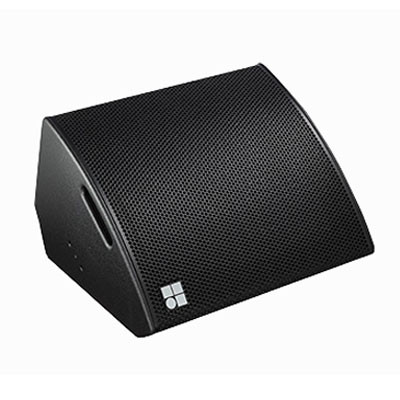

The 2-way passive MAX2 loudspeaker houses a 15” LF driver and a coaxially mounted 1.4” HF compression driver and achieves 75° conical constant directivity dispersion. The driver arrangement uses a single magnet assembly, allowing for a compact cabinet design with a low profile for strict visual demands.
The MAX2 provides a broad variety of deployment possibilities, whether used individually as a stage monitor; as a stand-alone full range system or, when combined with d&b subwoofers, as a drumfill.
The loudspeaker cabinet is constructed in marine plywood with an impact resistant paint finish. Four M10 threaded inserts allow connection to a flying bracket. The cabinet incorporates a pair of recessed grips for handling, while the front is protected by a rigid metal grill backed with an acoustically transparent foam. A pole mount is incorporated into one of the side panels. Two runners recessed in the bottom panel protect the cabinet from scratching and prevents movement.
System data
Frequency response (–5 dB standard) 55 Hz - 20 kHz4
Max. sound pressure (1m, free field)1
with D6/10D 131 dB
with D20/30D 135 dB
with D80 135 dB
Input level (100 dB SPL/1 m)
passive –17 dBu
Loudspeaker data
Configuration 2-way stage monitor
Nominal impedance 8 Ω
Power handling capacity (RMS/peak 10 ms) 250/1600 W
Nominal dispersion angle (h x v) 75°
Components 15" driver with ferrite magnet
coaxial 1.4" exit compression driver
passive crossover network
Connections 2 x NLT4 F/M
optional 2 x EP5 or 2 x NL4
