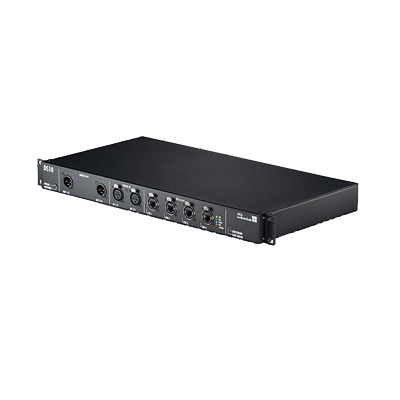

d&b system approach, positioned in front of the amplifiers within the signal chain, and is ideally suited to both mobile and installation environments. The DS10 sends meta data including Dante channel labels and cabling information via the AES3 channel stream to the d&b four channel amplifiers. As well as providing an interface from the Dante audio network to the digital inputs of the d&b amplifiers via Ethernet, the DS10 provides 4 digital AES3 input channels for applications such as a break in from a Front of House console.
The DS10 incorporates an integrated 5-port switch, offering a primary and redundant network for the Dante protocol, as well as advanced functions such as Multicast Filtering and VLAN modes. This switch flexibility provides extended connectivity for a laptop to control the d&b amplifiers using the R1 Remote control software via the OCA (Open Control Architecture) protocol.Using the DS10 Audio network bridge, audio signals and remote control data can be combined using a single Ethernet cable.
The front panel of the DS10 is designed to match the I/O panel of the D80 Touring rack assembly. This ensures a simple integration within existing system configurations.The DS10 features a power supply suitable for mains voltages 100 V – 240 V, 50 – 60 Hz, with Overvoltage protection of up to 400 V.
Control and indicators
BYPASS/NETWORK Toggle switch
Switch port modes/Audio loss LED indicators
SYNC ERROR Red LED indicator
SUBSCRIBED (RX Subscription) Green LED indicator
Digital inputs
DIGITAL IN 3 pin XLR female AES3
Sampling 32 - 192 kHz
Synchronization Sample Rate Converter (SRC)
Digital outputs
DIGITAL OUT 3 pin XLR male AES3
Sampling 48 / 96 kHz
Synchronization Dante network
Network
Connectors etherCON®
built-in 5-port Ethernet switch
100/1000 Mbit
Power supply
Mains connector powerCON®
Rated mains voltage 100 - 240 V, 50 - 60 Hz
Overvoltage protection Up to 400 VAC
Dimensions, weight
Height x width x depth 1 RU x 19“ x 232 mm
Weight 3.75 kg / 8.26 lb
