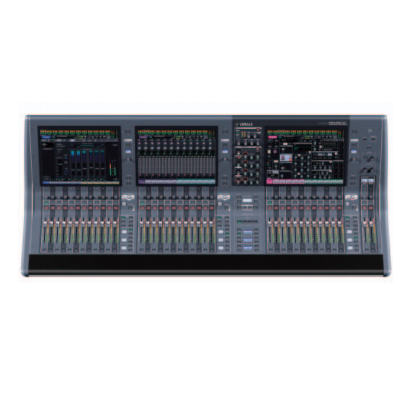

The RIVAGE PM5 Digital Mixing System packs undiluted RIVAGE PM power and performance into a lightweight, intuitive console that is surprisingly slim. Sound and features are essentially the same as the PM10 and PM7, while evolved hardware and software deliver a new mixing experience. The addition of a third display screen has made it possible to offer a more touch-centric interface in a compact, significantly lighter console that is easier to transport, setup, and operate in a wide range of venues.
The RIVAGE PM5 make all the power of the RIVAGE PM series even more accessible with a slim design that brings the touch-sensitive displays closer to the operator for incredibly smooth, comfortable control. This evolved console design also provides a closer connection to the performers on stage with improved sight lines that give the engineer a broader, more comprehensive view of the action.
Setting up sends is an important part of just about any live mixing workflow. In addition to the familiar Sends on Fader function, send levels can be controlled from the Send / User Defined Knobs. Send levels shown on the display panels where they can also be adjusted via touch control. This expanded range of control choices greatly enhances convenience and versatility when setting up and tweaking sends.
DSP Engine (DSP-R10)
- Slot: 2 MY slots, 4 HY slots (TWINLANe, Dante)
- Ports: GPI (8 in / 8 out), Word Clock In/Out, MIDI In/Out, Remote,
- TC IN, Fault Output
- Power supply: dual redundant power supply built-in
- Dimensions (WxHxD): 480 x 232 x 490mm (18.9" x 9.1" x 19.3") (5U rack size)
- Net Weight: 20 kg (44 lbs)
I/O Rack (RPio622)
- Slot: 6 RY slots, 2 MY slots, 2 HY slots (TWINLANe, Dante)
- Ports: Word Clock In/Out, Fault Output
- Power supply: dual redundant power supply built-in
- Dimensions (WxHxD): 480 x 455 x 490mm (18.9" x 17.9" x 19.3") (10U rack size)
- Net Weight: 30 kg (66 lbs)
Input Channel
- A/B, Gain Compensation, Digital Gain, HPF, LPF, 4-band PEQ, 2 Dynamics, Delay, 2 insert points (x4 daisy-chain), Direct Out
Output Channel
- HPF, LPF, 8-band PEQ, Dynamics, Delay (on channel and port), 2 insert points (x4 daisy-chain)
