Yamaha

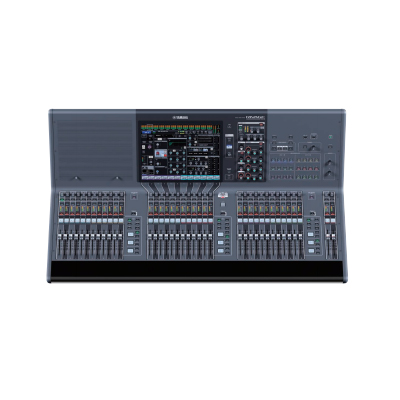

RIVAGE PM3
General Description

If you have a space that is wider than 1,145 millimeters (a little over 45 inches), the RIVAGE PM3 will fit. That’s awesome RIVAGE PM power in the most compact package ever, ideally suited to smaller venues or monitor applications. The RIVAGE PM3 has a simpler single-display interface with 24 User Defined Keys to facilitate access and speed up operation. You still get full RIVAGE PM sonic quality, a full set of features, and 38 physical faders for intuitive hands-on mixing.

may be the most compact model in the lineup, but the RIVAGE PM3 still offers a full complement of 38 (12+12+12+2) physical faders. This configuration is consistent throughout the RIVAGE PM lineup, providing intuitive hands-on mixing while making it easy for engineers to use any RIVAGE PM model without getting lost.

This high-visibility 15-inch display consolidates essential controls and information in an easily understandable format, so the engineer can read and react to situations with maximum speed and efficiency. Touch sensitivity not only allows basic clicking and selection, but familiar pinch and swipe gestures can be used as well for significantly enhanced operating efficiency. The display works in conjunction with the familiar Yamaha Selected Channel Section, providing a compact group of essential physical controls for fast, intuitive hands-on operation.
Product Features

Control Surface (CS-R3)

The control surface with single large touch panel displays and 38 faders enables you to perform general operations on the RIVAGE PM3 system.

• Display: 15" touch panel x 1 • Faders: 38 (12+12+12+2)

• Selected Channel section: Dynamics, GAIN, HPF, EQ, PAN, Function Knob

• Custom Fader banks: 6 x 5 on each bay

• User Defined keys: 12 x 4 banks

• Send/User Defined knobs: 1 (4 x 4 banks can be assigned)

• Touch and Turn knobs: 1

• Analog I / O: 8 in / 8 out • Slot: 2 MY slots

• Ports: GPI (8 in / 8 out), MIDI In / Out, 5 USB (1 for 2-track recording)

• Power supply: Dual redundant power supply built-in

• Dimensions(WxHxD): 1,145 x 385 x 650mm (45.1" x 15.2" x 25.6")

• Net Weight: 38 kg (83.8 lbs)

DSP Engine (DSP-R10)
- Slot: 2 MY slots, 4 HY slots (TWINLANe, Dante)
- Ports: GPI (8 in / 8 out), Word Clock In/Out, MIDI In/Out, Remote,
- TC IN, Fault Output
- Power supply: dual redundant power supply built-in
- Dimensions (WxHxD): 480 x 232 x 490mm (18.9" x 9.1" x 19.3") (5U rack size)
- Net Weight: 20 kg (44 lbs)

I/O Rack (RPio622)
- Slot: 6 RY slots, 2 MY slots, 2 HY slots (TWINLANe, Dante)
- Ports: Word Clock In/Out, Fault Output
- Power supply: dual redundant power supply built-in
- Dimensions (WxHxD): 480 x 455 x 490mm (18.9" x 17.9" x 19.3") (10U rack size)
- Net Weight: 30 kg (66 lbs)

Input Channel
- A/B, Gain Compensation, Digital Gain, HPF, LPF, 4-band PEQ, 2 Dynamics, Delay, 2 insert points (x4 daisy-chain), Direct Out

Output Channel
- HPF, LPF, 8-band PEQ, Dynamics, Delay (on channel and port), 2 insert points (x4 daisy-chain)
