Although all RIVAGE PM series consoles offer essentially the same features and capabilities, some applications are best served by a full-scale console with a panel layout that emphasizes hands-on efficiency. That’s where the RIVAGE PM10 and RIVAGE PM7 come to the fore, with generous, luxurious workspaces that can be advantageous in large-scale applications.
The RIVAGE PM7 all feature a full implementation of the Yamaha Selected Channel interface, with physical controllers that allow direct,intuitive control of all parameters in the currently selected channel. The Selected Channel interface brings the hands-on simplicity of analog mixing styles to the digital world, providing easy entry for engineers who learned on analog equipment. The Selected Channel controls and indicators are given plenty of space and are efficiently laid out for logical operation and comfort.
All RIVAGE PM consoles are designed with emphasis on ergonomics, providing a working environment that minimizes stress and fatigue. That applies not only to operation, but to transportation and setup as well. Another important factor for live performance mixing is sight lines. The RIVAGE PM consoles are designed to give the engineer a clear view of the stage and performers, allowing fast, appropriate response to visual cues.
(CS-R7)

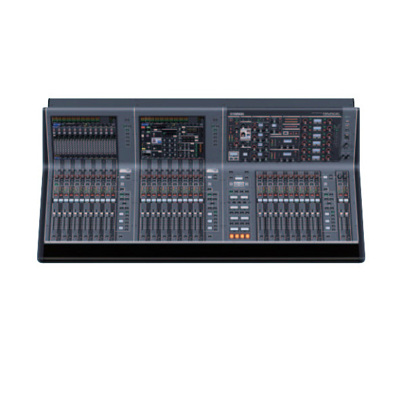

The CSD-R7 is a digital mixing console that serves as the core for signal processing and system control, and enables you to perform general operations on the RIVAGE PM7 system.
• Superior capability of processing digital audio signals of up to 144 inputs, 60 mix buses,
36 matrices, and two STEREO channels.
• Three HY card slots that are capable of transmitting / receiving up to 256 ins / outs of digital audio
signals / control signals.
• Display: 15" touch panel x 2 • Faders: 38 (12+12+12+2)
• Selected Channel section: comprehensive channel parameters
• Custom Fader banks: 6 x 5 on each bay
• User Defined keys: 12 x 4 banks
• User Defined knobs: 4 x 4 banks
• Touch and Turn knobs: 2
• Analog I / O: 8 in / 8 out • Slot: 3 HY slots, 2 MY slots
• AES/EBU: 4 in / 4 out (with SRC)
• Ports: TC In, GPI (8 in / 8 out), Word Clock In / Out, MIDI In / Out, 5 USB (1 for 2-track recording),
Video Out (DVI-D)
• Power supply: Dual redundant power supply built-in
• Dimensions (WxHxD): 1,549 x 4
I/O Rack (RPio622)
- Slot: 6 RY slots, 2 MY slots, 2 HY slots (TWINLANe, Dante)
- Ports: Word Clock In/Out, Fault Output
- Power supply: dual redundant power supply built-in
- Dimensions (WxHxD): 480 x 455 x 490mm (18.9" x 17.9" x 19.3") (10U rack size)
- Net Weight: 30 kg (66 lbs)
Input Channel
- A/B, Gain Compensation, Digital Gain, HPF, LPF, 4-band PEQ, 2 Dynamics, Delay, 2 insert points (x4 daisy-chain), Direct Out
Output Channel
- HPF, LPF, 8-band PEQ, Dynamics, Delay (on channel and port), 2 insert points (x4 daisy-chain)
