Launching a new generation of PM consoles, the RIVAGE PM10 is here. In terms of sound quality, operation, functionality, reliability, expandability, and more, the RIVAGE PM10 is a thoroughly refined flagship that defines the direction for future generations. It is a worthy heir to the PM name that brings true innovation to the evolving live sound scene.
With operation and features designed to comprehensively support today's live sound scene, RIVAGE PM10 allows engineers to focus on the sound and enjoy the creative process.
The RIVAGE PM10 system consists of a control surface, one or two DSP engines, up to eight I/O racks, and RY/HY cards. The system can be flexibly configured to suit applications of any scale or complexity.
Mixing Capacity
- 44.1/48/88.2/96 kHz
- 144 input channels
- 72 Mix buses, 36 Matrix buses
- Stereo buses A and B (or Mono bus)
- Cue A/B, Monitor A/B

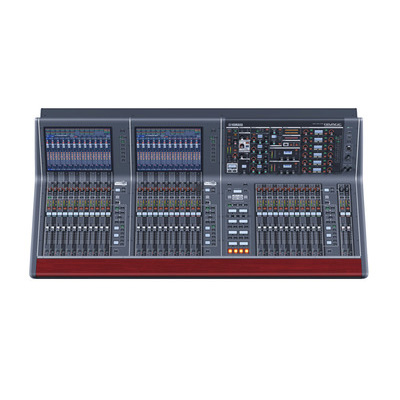

Control Surface (CS-R10)
- Display: 15" touch panel x 2
- Faders: 38 (12+12+12+2)
- Selected Channel section: comprehensive channel parameters
- Custom Fader banks: 6 x 2 on each bay
- User Defined keys: 12 x 4 banks
- User Defined knobs: 4 x 4 banks
- Touch and Turn knobs: 2
- Analog I/O: 8 in / 8 out
- Slot: 2 MY slots
- AES/EBU: 4 in / 4 out (with SRC)
- Ports: GPI (8 in / 8 out), Word Clock Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D)
- Power supply: dual redundant power supply built-in
- Dimensions (WxHxD): 1,549 x 417 x 848mm (61.0" x 16.4" x 33.4")
- Net Weight: 85 kg (187 lbs)
DSP Engine (DSP-R10)
- Slot: 2 MY slots, 4 HY slots (TWINLANe, Dante)
- Ports: GPI (8 in / 8 out), Word Clock In/Out, MIDI In/Out, Remote,
- TC IN, Fault Output
- Power supply: dual redundant power supply built-in
- Dimensions (WxHxD): 480 x 232 x 490mm (18.9" x 9.1" x 19.3") (5U rack size)
- Net Weight: 20 kg (44 lbs)
I/O Rack (RPio622)
- Slot: 6 RY slots, 2 MY slots, 2 HY slots (TWINLANe, Dante)
- Ports: Word Clock In/Out, Fault Output
- Power supply: dual redundant power supply built-in
- Dimensions (WxHxD): 480 x 455 x 490mm (18.9" x 17.9" x 19.3") (10U rack size)
- Net Weight: 30 kg (66 lbs)
Input Channel
- A/B, Gain Compensation, Digital Gain, HPF, LPF, 4-band PEQ, 2 Dynamics, Delay, 2 insert points (x4 daisy-chain), Direct Out
Output Channel
- HPF, LPF, 8-band PEQ, Dynamics, Delay (on channel and port), 2 insert points (x4 daisy-chain)
