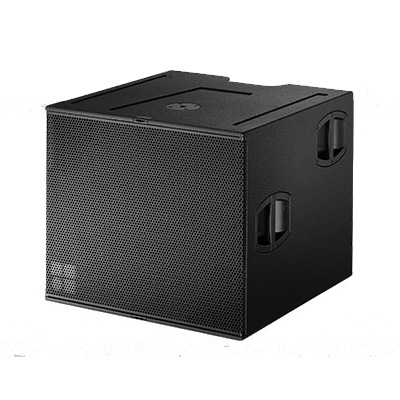

The V-GSUB and Vi-GSUB are actively driven high performance cardioid subwoofers powered by a single amplifier channel. The V-GSUB and Vi-GSUB are intended for ground stacked applications only, and share the same acoustical and visual design as the V-SUB and Vi-SUB, which feature integrated rigging equipment. The Vi-GSUB is the installation version of the V-GSUB. They house two long excursion neodymium drivers, an 18" driver in a bass-reflex design facing to the front and a 12" driver in a two chamber bandpass design radiating to the rear. The cardioid dispersion pattern resulting from this arrangement avoids unwanted energy behind the system that reduces the excitation of the reverberant field at low frequencies and provides the greatest accuracy of low frequency reproduction.
The cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The V-GSUB top panel has a recess in the form of the footprint of a V7P/V10P enclosure to prevent cabinet movement when stacking one TOP loudspeaker. The enclosure features two runners to protect the bottom panel from scratching. Two correspondingly shaped recesses are incorporated into the top panel of each V-GSUB cabinet to accept these runners, preventing cabinet movement when stacked. Each side of the V-GSUB panel incorporates two handles whilst the top panel has an M20 high stand flange inserted.
System data
Frequency response (–5 dB standard) 37 Hz - 115 Hz
Frequency response (–5 dB 100 Hz mode) 37 Hz - 95 Hz
Max. sound pressure (1 m, free field)
with 30D/D20 133 dB
with D80 137 dB
Loudspeaker data
Nominal impedance 8 ohms
Power handling capacity (RMS/peak 10 msec) 800/3200 W
Components 1 x 18" driver
1 x 12" driver
Connections V-GSUB 2 x NLT4 F/M
optional 2 x NL4 or 2 x EP5
Connections Vi-GSUB 2 x NL4 and screw terminal block
