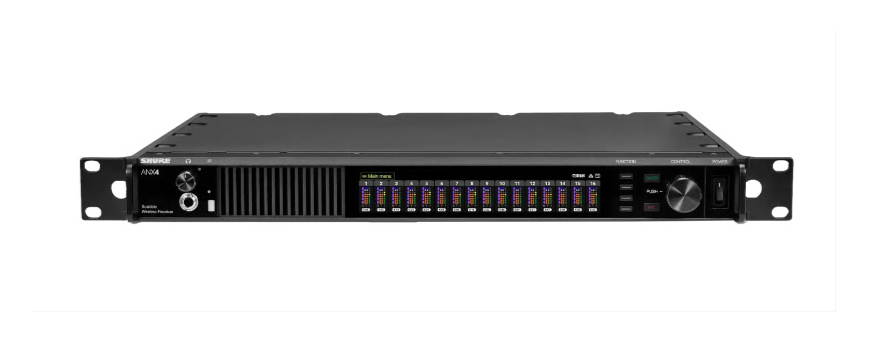

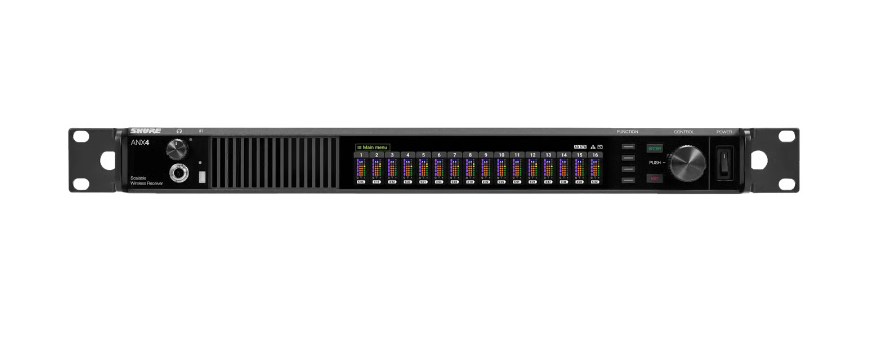

The ultimate high-tier, high channel count wireless receiver, Shure ANX4 receives up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space. Delivering maximum flexibility, ANX4 does not ship preconfigured with active wireless channels, allowing you the opportunity to purchase channels in single- and four-channel increments and activate the exact number of channels you need. Licenses can be activated in one ANX4 and later removed and activated in a different ANX4 as needs change. ANX4 channel licenses are perpetual licenses, not subscription-based licenses, and can be purchased through the same authorized suppliers ANX4 hardware units are sold (or at Shure.com/anx4) and managed via your ShureCloud user account. All the exceptional features found in award-winning Axient Digital and ULX-D receivers that have made them standards on stages, in facilities, on tour, and on location throughout the world are available in the ANX4**. Whether you operate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximizes your budget, rack space, and rack weight in delivering large wireless audio channel counts in a single rack design. What’s more, this 1RU format also enables streamlined antenna configurations for large channel count environments. *ANX4 receiver does not ship preconfigured with active wireless channels. Channel licenses are sold separately and required for operation. **System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems at one time).
Maximize channel count. Minimize space.
■ Scalable Wireless Receiver for use with Axient Digital and ULX-D wireless systems
■ Receives up to 16 channels of Axient Digital or 24 channels of ULX-D in a single rack space
■ Channel licenses are perpetual licenses, available in single- and four-channel options (sold separately)*
■ Purchased channel licenses can be activated in one ANX4 and later removed and activated in another ANX4, as needed, conveniently via ShureCloud user account
■ Wide tuning range covers 174 MHz to 2 GHz, covering all Axient Digital and ULX-D options (except for the ULX-D 902 MHz band)
■ All Axient Digital or ULX-D features included**
■ Large, 6.6-inch front panel color display
■ Five-segment Channel Quality meter displays RF signal-to-noise
■ ¼-inch front-panel headphone connector for monitoring with Dante Browse (for both Axient Digital and ULX-D)
■ Streamlined and cost-saving antenna setup for large-scale wireless deployment scenarios
■ 4 x Ethernet ports for network control and Dante/AES67 digital output options
■ 4 x coaxial RF antenna input connectors support multiple frequency bands and provides greater coverage for complex setups
■ Networked control with Shure Wireless Workbench® for extended and enhanced RF monitoring and management
■ DC module version available to support redundant power
*ANX4 receiver does not ship preconfigured with active wireless channels. Channel licenses are sold separately and required for operation.
**System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems at one time).
Your choice of up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space**. Sold separately, ANX4 channel licenses are purchased through the same authorized suppliers ANX4 hardware units are sold (or at Shure.com/anx4) and managed via your ShureCloud user account*. Once purchased, ANX4 channel licenses can be activated in one ANX4 and later removed and activated in a different ANX4. This is especially beneficial for users who own multiple ANX4 units serving various needs that change over time. Shure ANX4 delivers innovative, space-saving hardware, award-winning wireless audio features, and the ability to scale to the number of wireless channels your project demands.
*ANX4 receiver does not ship preconfigured with active wireless channels. Channel licenses are sold separately and required for operation.
**System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems at one time).
