d&b audiotechnik
  • 4S loudspeaker
  • General Description

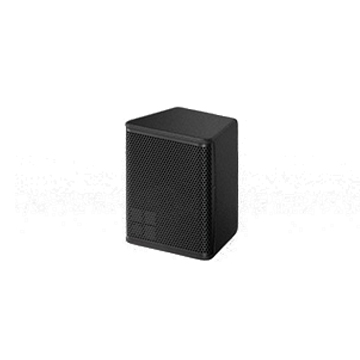

    The 4S is a lightweight 2-way passive loudspeaker using a neodymium LF driver and a coaxially mounted wide dispersion dome tweeter. The coaxial designed 4S employs a 4" driver in a highly compact sealed enclosure and offers a symmetrical dispersion pattern in the horizontal and vertical plane while the cabinet may be mounted in either orientation.


    It can be used stand-alone or supplemented by different subwoofers from the xS-Series.


    The enclosure is injection moulded with an impact resistant black or white paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam and incorporated into the rear panel are two M8 threaded inserts.

  • Product Features

    System data
    Frequency response (–5 dB standard)              130 Hz - 20 kHz
    Frequency response (–5 dB CUT mode)           180 Hz - 20 kHz
    Max. sound pressure (1 m, free field)
    with D6/10D                                                       114 dB
    with 30D/D20                                                     115 dB
    with D80                                                             115 dB
    Input level (100 dB SPL/1 m)                              –4 dBu



    Loudspeaker data
    Nominal impedance                                                 16 ohms
    Power handling capacity (RMS/peak 10 msec)       60/400 W
    Nominal dispersion angle                                       100° conical
    Components                                                             4" driver with neodymium magnet
                                                                                     0.75" dome tweeter coaxially mounted
                                                                                     passive crossover network
    Connections                                                             2 x NL4
                                                                                     screw terminal block


    Dimensions mm (H x W x D)                                   150 x 120 x 102
    Weight kg                                                                1
    Dimensions inch (H x W x D)                                   5.91 x 4.72 x 4
    Weight lb                                                                 2
