Rooted in d&b’s commitment to delivering consistent, high-quality sound for every listener, CCL introduces a new level of performance in a compact format. With advanced directivity control and low-frequency cardioid behavior via single-channel operation, CCL brings clarity, control, and scalability to a wide range of mobile applications.

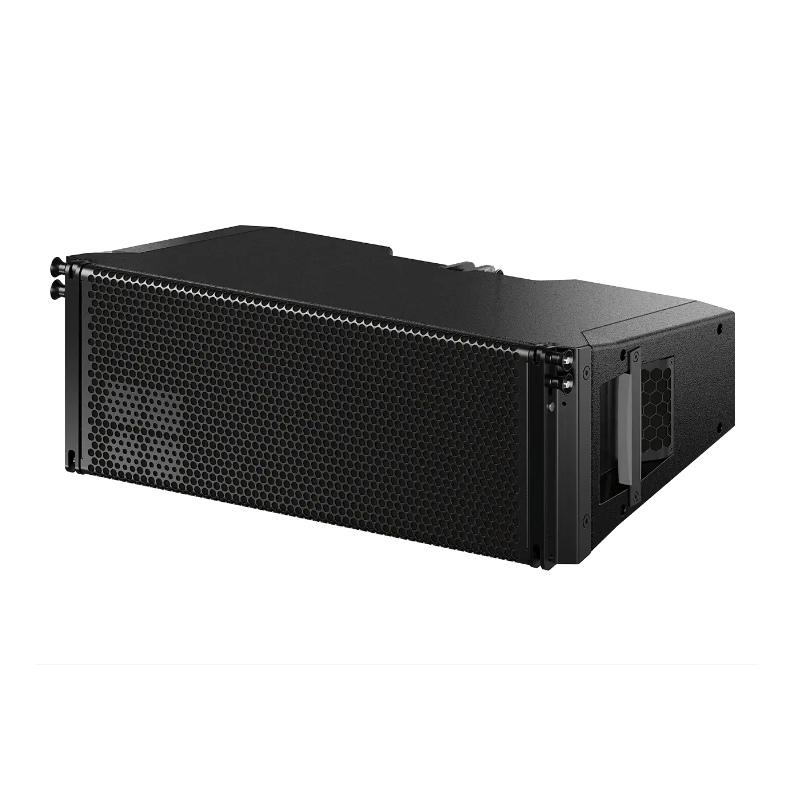

The cabinet enclosure is injection molded (ABS Polycarbonate) and has an impact and weather protected 2K finish. The front and side panels of the cabinet incorporate a rigid metal grill backed by an acoustically transparent and water repellent fabric. Each side panel incorporates a handle while two additional handles are provided at the rear.
System data
Max. sound pressure1
with D25/25D 134 dB
with D40/D80/D90/40D 136 dB
Frequency response (-5 dB standard) 62 Hz - 18 kHz
Frequency response (-5 dB CUT mode) 110 Hz - 18 kHz
Frequency response (-10 dB standard, IEC60268) 58 Hz - 18 kHz
Frequency response (-10 dB CUT mode, IEC60268) 78 Hz - 18 kHz
Cabinets per D40/D80/D90 (ArrayProcessing) 4
Cabinets per D40/D80/D90 (Line or Arc mode) 8
Loudspeaker data
Nominal impedance 10 ohms
Power handling capacity (RMS/peak 10 ms) 400/1200 W
Nominal dispersion angle (horizontal) 120°
Splay angle settings 0 ... 14° (1° increment)
Components 2 x 7" front LF driver
2 x 5" side LF driver
2 x 1.75" HF compression driver
Passive crossover network
Connections NLT4 F/M
Dimensions / weight
Dimensions (h x w x d) 8.23 x 23.35 x 14"
209 x 593 x 355 mm
Weight 17.6 kg
38,8 lb
