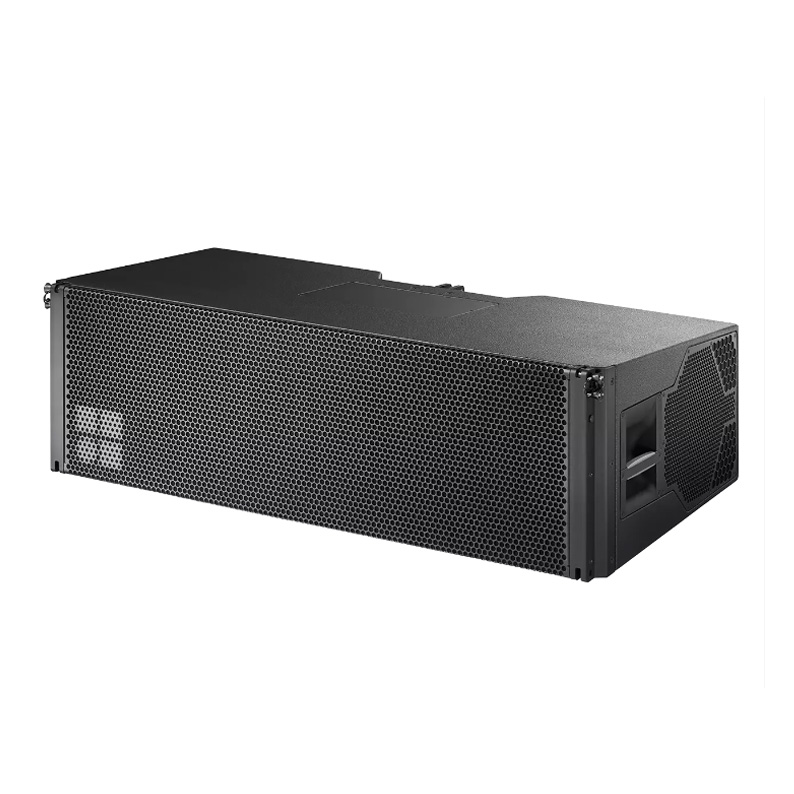

The KSL12 line array module produces an 120° constant directivity dispersion pattern in the horizontal plane over the entire operating bandwidth. The KSL12 houses two 10" neodymium forward facing LF drivers and two side firing 8" neodymium LF drivers. A coaxial mid-high section contains an MF horn with an 8" driver and two 1.4" exit, 3" voice coil HF compression drivers mounted to a dedicated wave shaping device. SL-Series flying hardware comes with a patented workflow with integrated tension and compression rigging modes, allowing splay angles between cabinets from 0° to 10° in 1° increments. The loudspeakers are driven actively by two channels of an appropriate d&b amplifier. One channel powers the 10” LF drivers, the second channel powers all other components, which are passively crossed-over. This component geometry allows for a smooth crossover design with well-defined overlaps between adjacent bands providing consistent, even and very accurate horizontal dispersion. Due to the arrangement of the front and side firing LF drivers, seamless directivity control is maintained from the lowest frequencies the loudspeaker produces to above 18 kHz. Further expanding flexibility and catering for applications where smaller arrays are used and ArrayProcessing is not required, the KSL12 includes the option to link two cabinets in Line or Arc mode. The cabinets are constructed from marine plywood and have an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front and side panels incorporate rigid metal grills backed by an acoustically transparent and water repellent fabric. Each side panel incorporates a recessed handle, with additional handles provided at the rear.
System data
Frequency response (-5 dB standard) 54 Hz - 18 kHz
Frequency response (-5 dB CUT mode) 75 Hz - 18 kHz
Max. sound pressure1 with D40/D80/D90/40D 144
Cabinets per D40/D80/D90/40D (ArrayProcessing) 2
Cabinets per D40/D80/D90/40D (Line or Arc mode) 4
Loudspeaker data
Nominal impedance front LF 8 ohms
Nominal impedance side LF/MF/HF 8 ohms
Power handling capacity front LF (RMS/peak 10 ms) 450/1800 W
Power handling capacity side LF/MF/HF (RMS/peak 10 ms) 250/1000 W
Nominal dispersion angle (horizontal) 120 °
Splay angle settings 0 … 10° (1° increment)
Components 2 x 10" front LF driver
2 x 8" side LF driver
1 x 8" MF driver
2 x 1.4" exit compression driver with 3" voice coil
Passive crossover network
Connections 2 x NLT4 F/M
Dimensions / weight
Dimensions (h x w x d) 330 x 1000 x 597 mm
13 x 39.4 x 23.5"
Weight 58 kg
128 lb
(1)1 m, free field, SPL max peak, Broadband signal IEC 60268, one speaker driven
