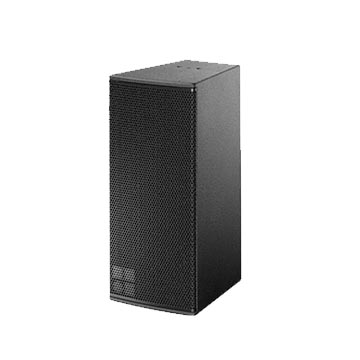

The compact, 2-way passive Y10P loudspeaker features two 8” drivers in a dipole arrangement with a 1.4” compression driver mounted onto a rotatable CD horn. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These point source, high performance cabinets offer 110° horizontal directivity controlled down to 500 Hz, matched with a vertical dispersion of 40°. The horn can be rotated by 90° to enable horizontal orientation. The Y10P provides a broad variety of deployment possibilities, especially when used as a stand-alone full range system, or combined with other elements from the Y-Series, either ground stacked or flown. The loudspeaker cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The cabinet incorporates a pair of handles whilst M10 threaded inserts are provided for attaching d&b rigging hardware. Additionally, two further M10 sockets accept the 8mm load pin to expand the mounting options.
System data
Frequency response(-5 dB standard) 59 Hz - 18 kHz
Frequency response(-5 dB CUT mode) 118 Hz - 18 kHz
Max. sound pressure (1m, free field) ¹
with D6 131 dB SPL
with D80 136 dB SPL
Cabinets per channel D6/D80 2
Loudspeaker data
Nominal impedance 8 ohms
Power handling capacity LF (RMS/peak 10 ms) 400/1600 W
Nominal dispersion angle (h x v) 110° x 40°
Components
2 x 8" driver with neodymium magnet
1.4" compression driver
passive crossover network
Connections 2 x NLT4 F/M
optional 2 x NL4 or 2 x EP5
Dimensions、weight
Dimensions (H x W x D) 580 x 257 x 341
mm 22.8 x 10 x 13.4 "
Weight 19 kg
42 lb
