  • Yi7P loudspeaker
  • General Description

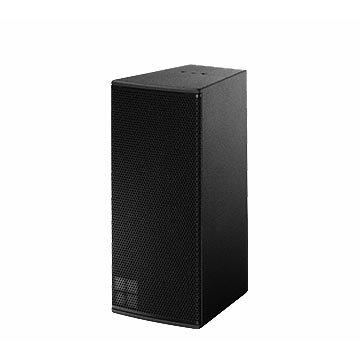

    The compact, 2-way passive Yi7P loudspeaker features two 8” drivers in a dipole arrangement with a 1.4” compression driver mounted onto a rotatable CD horn. The Yi7P is the installation version of the Y7P loudspeaker and differs only in cabinet construction, finish and mounting hardware. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These point source, high performance cabinets offer 75° horizontal directivity controlled down to 500 Hz, matched with a vertical dispersion of 40°. The horn can be rotated by 90° to enable horizontal orientation. The Yi7P provides a broad variety of deployment possibilities, especially when used as a stand-alone full range system, or combined with other elements from the Y-Series, either ground stacked or flown. The loudspeaker cabinet is constructed from marine plywood and has an impact resistant paint finish whilst Weather Resistant and Special Colour versions are available. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. M10 threaded inserts are provided for attaching d&b rigging hardware.

  • Product Features

    System data

    Frequency response (-5 dB standard)                             59 Hz - 18 kHz

    Frequency response (-5 dB CUT mode)                          118 Hz - 18 kHz

    Max. sound pressure (1m, free field)

    with D6                                                                             132 dB SPL

    with D80                                                                           137 dB SPL

    Cabinets per channel D6/D80                                          2


    Loudspeaker data

    Nominal impedance                                                              8 ohms

    Power handling capacity LF (RMS/peak 10 ms)                    400/1600 W

    Nominal dispersion angle (h x v)                                          75° x 40°

    Components                                                                         2 x 8" driver with neodymium magnet

                                                                                                 1.4" compression driver

                                                                                                  passive crossover network

    Connections                                                                          2 x NL4


    Dimensions, weight

    Dimensions (H x W x D)                                                       580 x 257 x 341

    mm                                                                                       22.8 x 10 x 13.4 "

    Weight                                                                                  17 kg

                                                                                                 37.5 lb
