  • Model M Automatic Mixing Controller
  • General Description

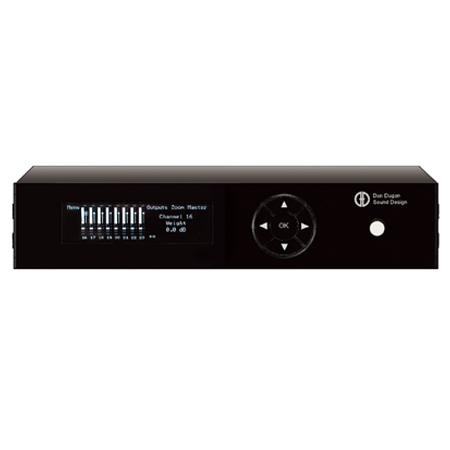

    The Model M Automatic Mixing Controller helps professional audio mixers handle multiple live mics without having to continually ride their individual faders. The Model M have 64 channels of processing, accept Optical and BNC MADI connectors.Power over Ethernet (PoE) capable,and the standard Dugan can linking for larger systems or 16 channels ADAT I/O.Signal processor patches into the input insert points of an audio mixing console.

    It detects which mics are being used and makes fast, transparent cross-fades, freeing the mixer to focus on balance and sound quality instead of being chained to the faders. The Model M voice-controlled crossfades track unscripted dialogue perfectly, eliminating cueing mistakes and late fade-ups while avoiding the choppy and distracting effects common to noise gates.

  • Product Features

    madi i/o                                   AES10-2008 (r2014) optical or coaxial
                                                   64 channels @ 48 kHz sample rate
                                                   32 channels @ 96 kHz sample rate
    adat i/o                                   16 channels
    gain                                         Unity
    sample rate                              48 – 96 kHz
    bit depth                                  24 bit

    audio latency                            < 1 ms
    frequency response                  10 Hz – 48 kHz, +/- 0.0075 dB @ 96 kHz
    output noise                            -125 dBFS (20 Hz – 20 kHz), -128 dBAFS
    distortion                                 -125 dBFS

    algorithms                                Dugan Speech System™, Dugan Music System™, Dugan Gain Limiting™
    Linking                                     Up to eight units can be linked into one system in an optical ring network



    audio i/o                                   MADI: Two optical (multimode) SC (IEC 61754-4), two coaxial BNC 75-Ohm
                                                    ADAT: Two TOSLINK optical

    word clock i/o                           Two BNC 75-Ohm
    linking i/o                                 Two TOSLINK optical

    network                                    Three RJ-45, one accepts PoE


    connector                                 Coaxial with locking collar, 5.5 mm o.d., 2 mm i.d., center positive
    electrical                                   Nominal 12 VDC, 1.0 A maximum (12 W); accepts 12-24 VDC

    PoE                                          802.3af-2003-compliant powered device (PD)

    external supply                          Input: 100-240 VAC, 50-60 Hz, 24W
                                                    Output: 18 V, 1.3 A
                                                    Approved: UL, GS, CE, FCC. LPS, CCC(S&E)


    Dimensions                               1 RU   H= 1.75 in (4.5 cm)  D = 8.3 in (21 cm)  W = 8.75 in (22.2 cm)
    Weight                                     3.4 lb (1.54 kg)
                                                    7 lb (2.5 kg) in shipping box with rack mounting kit and power supply
