  • 30D amplifier
  • General Description

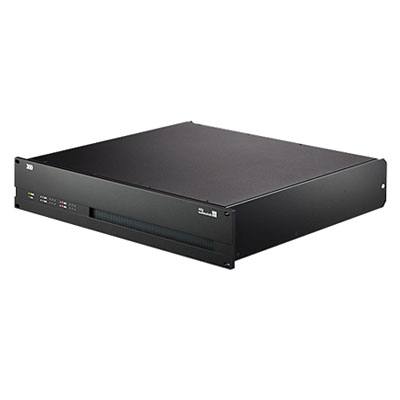

    The 2 RU, four channel 30D amplifier is designed for permanent integration with applications that require medium to high Sound Pressure Level (SPL) capabilities. This device contains extended input management functionalities with separate Input Gain control for each input channel, General Purpose Inputs/Outputs (GPIO) and a General Fault connector. Enhanced system status monitoring functions such as Input and Load monitoring ensure suitability in an emergency situation.



    The 30D shares the same Digital Signal Processing platform as the latest generation of d&b amplifiers, providing configurations for all d&b loudspeakers as well as a linear mode.



    The DSP integrated within the 30D incorporates comprehensive loudspeaker management, switchable filtering functions as well as user definable equalization and delay capabilities. This includes two 16-band equalizers, providing optional parametric, asymmetric, shelving or notch filtering and up to 10 s (= 3440 m/11286 ft) signal delay, all of which can be applied independently to each channel.



    The 30D is accessible via the d&b Remote network, either via Ethernet using the Open Control Architecture protocol (OCA) or CAN-Bus using RJ45 connectors. The 30D is controlled using the integrated web interface, which enables access via a browser, or using the d&b R1 Remote control software. The device itself contains LEDs to display power, input, data and mute status.



    The LoadMatch function integrated within the 30D amplifier electrically compensates for the properties of loudspeaker cable used. The 30D incorporates Class D amplifiers utilizing a power supply with active Power Factor Correction (PFC) suitable for mains voltages 100 V/127 V, 50 – 60 Hz and 208 V/240 V, 50 - 60 Hz and maintains a stable output when used with weak or unstable mains supplies. Input and output connectors are all Euroblock sockets.

  • Product Features

    Data

    Controls and indicators
    POWER                                                          Mains power switch (rear panel)
    ISP, GR, OVL A/B                                           LED indicators



    Digital Signal Processing
    Equalizer                                                        2 x 16-band PEQ/notch/shelving/asymmetric
    Latency analog and digital inputs                  0.3 msec.
    Delay setting                                                  0.3 msec. - 10 sec.
    Configurations                                               current d&b loudspeakers and linear mode
    Function switches                                          d&b loudspeaker specific circuits
    Frequency generator                                     Pink noise or Sine wave 10 Hz - 20 kHz
    SRC (Sample rate converter)                         Selectable for AES 1/2 and 3/4
    Sampling rate                                                96 kHz/27 Bit ADC/24 Bit DAC



    Connectors
    INPUT ANALOG (A1 - A4)                             3-pin Phoenix Euroblock male
    ANALOG LINK (A1 - A4)                                3-pin Phoenix Euroblock male
    INPUT DIGITAL (D1/2, D3/4)                         3-pin Phoenix Euroblock male, AES3
    DIGITAL LINK (Output)                                  3-pin Phoenix Euroblock male
    Sampling rate                                                48/96 kHz / 2 Ch/n
    Sampling Digital AES/EBU                             48 kHz/96 kHz
    Speaker outputs A/B/C/D                              2 x 4-pin Phoenix Euroblock female
    Mix TOP/SUB / 2-Way Active output A/B and C/D
                                                                           2 x 4-pin Phoenix Euroblock female
     GPIO (General Purpose Input Output)         1 x 6-pin Phoenix Euroblock male
    General Fault                                                 1 x 3-pin Phoenix Euroblock male
    CAN                                                               2 x RJ 45 parallel
    ETHERNET                                                     2 x RJ 45, 10/100 Mbit Ethernet
    Mains connector                                            powerCON®



    Data (linear setting with subsonic filter)
    Maximum output power per channel (THD + N < 0.5%, all channels driven)
    CF = 6 dB at 4 / 8 ohms                                 4 x 1000/800 W
    CF = 12 dB at 4 / 8 ohms                               4 x 1600/800 W
    S/N ratio (unweighted, RMS)
    Analog input                                                   > 104 dBr
    Digital input                                                    > 106 dBr



    Power supply
    Type                                                               Universal range switched mode power supply with active power factor correction (PFC)
    Rated mains voltage                                      100 to 240 V, 50 – 60 Hz



    Dimensions, weight
    Dimensions (H x W x D)                                 2 RU x 19" x 435 mm/17.1"
    Weight                                                           10.6 kg / 23.4 lb
