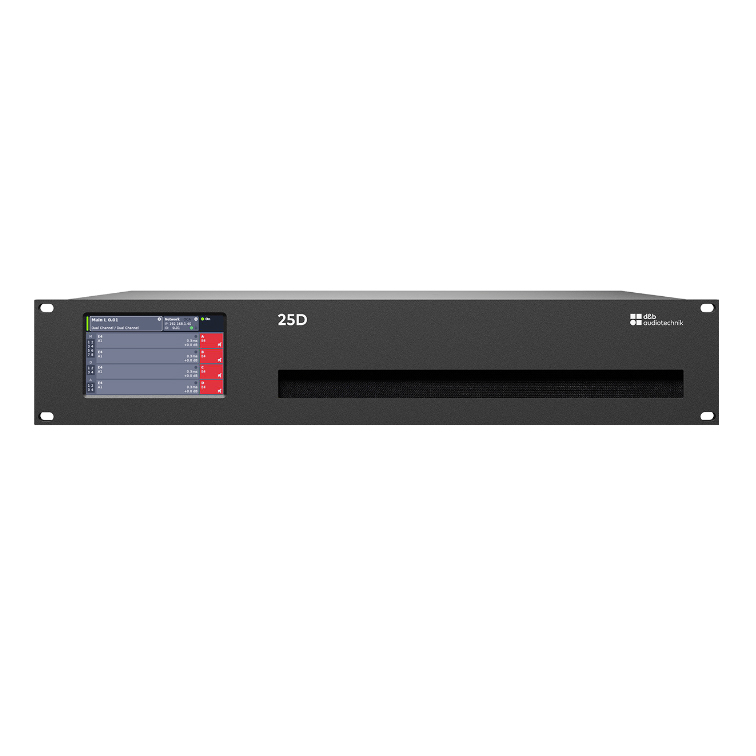

The 2 RU 25D amplifier provides power output optimized for smaller installation systems, while offering the same full DSP feature set as our high-output amplifiers.
The 25D amplifier has a dynamic range of 112 dB (unweighted) and is designed to drive high voltage d&b loudspeakers while providing comprehensive management and protection capabilities.
The user interface consists of a 4.3" (480 x 272 pix.) colour touchscreen, which provides comprehensive information about device configuration and enhanced status monitoring.
The 25D also includes enhanced energy saving features, power efficiency and Automatic Wake up for environmentally responsible and sustainable Green Building requirements.
Powerful signal processing extends the level of functionality of the onboard features. These include a range of loudspeaker-specific filter functions plus two user-definable 16-band EQs, which facilitate system tuning.
This device contains extended input management functionalities with separate Input Gain control for each input channel, General Purpose Inputs/Outputs (GPIO) and a General Fault connector. Enhanced system status monitoring functions such as Input and Load monitoring ensure suitability in an emergency situation.
Configurations
Loudspeaker setups A list of d&b loudspeakers supported by the 25D is included in the
Release notes of the amplifier firmware.
Digital Signal Processing
Equalizer 2 x 16-band PEQ/notch/shelving/asymmetric
Latency analog and digital inputs 0.3 ms
Delay setting 0.3 ms - 10 s
Configurations A list of d&b loudspeakers supported by the 25D is included in the
Release notes of the amplifier firmware
Function switches d&b loudspeaker specific circuits
Frequency generator Pink noise or Sine wave 10 Hz - 20 kHz
Controls and indicators
Status information and monitoring Color touchscreen, 4.3" 480 x 272 pixel
Connectors
Sampling frequency Digital AES/EBU 44.1, 48, 96, 192 kHz
INPUT ANALOG (A1 - A4) 3-pin Phoenix Euroblock male
ANALOG LINK (A1 - A4) 3-pin Phoenix Euroblock male
INPUT DIGITAL (D1/2, D3/4) 3-pin Phoenix Euroblock male, AES3
INPUT Network Audio (Milan) (M1-M8) etherCON® built-in 5-port AVB Ethernet switch 100/1000 Mbit
DIGITAL LINK (Output) 3-pin Phoenix Euroblock male, AES3
Speaker outputs A/B/C/D 2 x 4-pin Phoenix Euroblock female
Mix TOP/SUB / 2-Way Active output A/B and C/D 2 x 4-pin Phoenix Euroblock female
GPIO (General Purpose Input Output) 1 x 14-pin Phoenix Euroblock male
Ethernet 2 x RJ 45, 1 Gbit / 100 Mbit Ethernet
Mains connector powerCON® TRUE1 TOP
FAULT 1 x 3-pin Phoenix Euroblock male
Data (linear setting with subsonic filter)
Maximum output power per channel 4 x 1800/900 W
(THD+N < 0.5%, all channels driven)
CF = 12 dB at 4 / 8 ohms
Power supply
Type Autosensing switch mode power supply with active Power Factor Correction (PFC)
Rated mains voltage 100 - 127 / 208 - 240 V, 50 - 60 Hz
Dimensions / weight
Dimensions (h x w x d) 2 RU x 19" x 465 mm (18.3")
Weight 13,3 kg
29,3 lb
