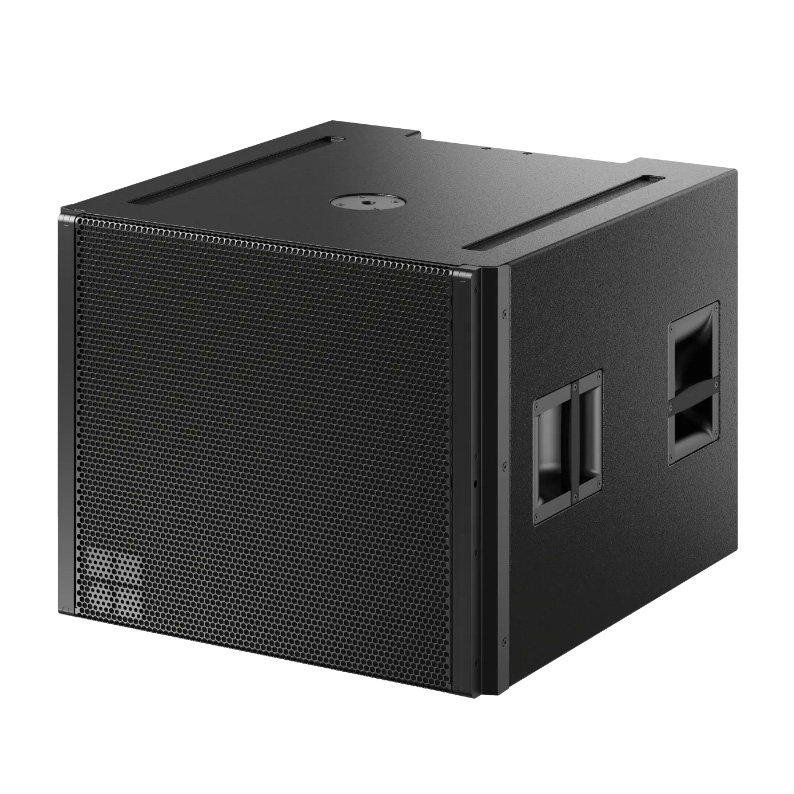

  • XSL-GSUB subwoofer
  • General Description

    The XSL-GSUB is cardioid subwoofer for the XSL System. It can be used to supplement XSL8 and XSL12 loudspeakers, either flown (XSL-SUB) or ground stacked (XSL-GSUB).

    The XSL-GSUB is an actively driven, 2-way bass-reflex design housing two long excursion neodymium drivers; an 18” driver faces to the front of the cabinet, and a 12” driver radiates to the rear. The front and rear facing drivers operate in independent bass-reflex chambers and are driven from separate amplifier channels. Two XSL-GSUBs can be linked to a pair of D80 / D40 amplifier channels.

    The subwoofer’s cardioid dispersion pattern reduces unwanted energy behind the system, resulting in less excitation of the reverberant field to deliver highly accurate low frequency reproduction. The frequency response extends from 37 Hz to 110 Hz (35 Hz to 85 Hz in INFRA mode). Two XSL-GSUBs can be linked to a pair of D80 / D40 amplifier channels.

    The XSL-GSUB cabinet has no rigging components as it is intended for ground stacked purposes only. Two runners extend from the front to the rear to protect the bottom panel. Two correspondingly shaped recesses are incorporated into the top panel which accept the runners and prevent cabinet movement when multiple subwoofers are stacked.

    The cabinets are constructed from marine plywood and have an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front and rear of the cabinet is protected by a rigid metal grille backed by an acoustically transparent and water repellent fabric.

  • Product Features

    System data

    Max. sound pressure1

    with D40/D80/D90/40D                                                       137 dB

    Frequency response (-5 dB standard)                                  37 Hz - 110 Hz

    Frequency response (–5 dB INFRA mode)                           35 Hz - 85 Hz

    Cabinets per D40/D80/D90/40D                                          4



    Loudspeaker data

    Nominal impedance front/rear                                            8/16 ohms

    Power handling capacity front (RMS/peak 10 ms)              700/1500 W

    Power handling capacity rear (RMS/peak 10 ms)                400/800 W

    Splay angle settings                                                             0°and 2.5°

    Components                                                                        1 x 18" front LF driver

                                                                                                 1 x 12" rear LF driver

    Connections                                                                         NLT4 F/M



    Dimensions / weight

    Dimensions (h x w x d)                                                        565 x 700 x 7732 / 898 mm

                                                                                                22.2 x 27.6 x 30.42 / 35.4"

    Weight                                                                                 62 kg

                                                                                                136 lb



    (1) 1 m, free field, SPL max peak, test signal: pink noise with crest factor 4, one speaker driven

    (2)dimensions without wheels
