  • XSL subwoofer
  • General Description

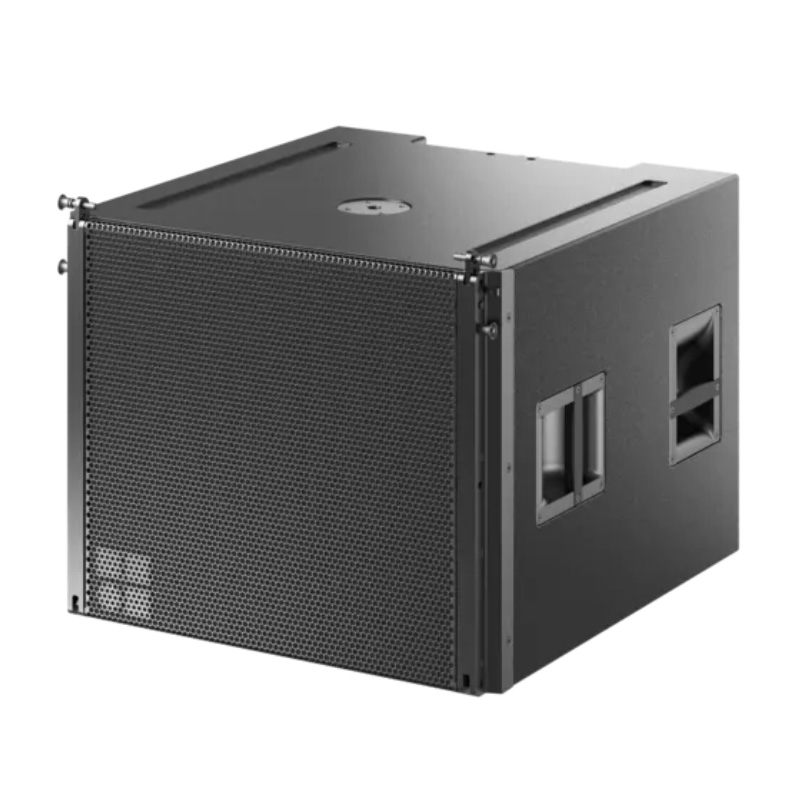

    The XSL-SUB is a cardioid subwoofer for the XSL System. It can be used to supplement XSL8 and XSL12 loudspeakers, either flown (XSL-SUB) or ground stacked (XSL-GSUB).

    When the XSL-SUB Mounting frame is used, XSL-SUB cabinets can be flown as pure SUB columns or in mixed arrays above XSL-TOP cabinets using the additional XSL-SUB Mounting adapter. The XSL-SUB is an actively driven, 2-way bass-reflex design housing two long excursion neodymium drivers; an 18” driver faces to the front of the cabinet, and a 12” driver radiates to the rear. The front and rear facing drivers operate in independent bass-reflex chambers and are driven from separate amplifier channels. Two XSL-SUBs can be linked to a pair of D40 amplifier channels.

    The subwoofer’s cardioid dispersion pattern reduces unwanted energy behind the system, resulting in less excitation of the reverberant field to deliver highly accurate low frequency reproduction. The frequency response extends from 37 Hz to 110 Hz (35 Hz to 85 Hz in INFRA mode). Two XSL-SUBs can be linked to a pair of D40 amplifier channels.

    The cabinets are constructed from marine plywood and have an impact and weather protected PCP (Polyurea Cabinet Protection) finish.  The front and rear of the cabinet is protected by a rigid metal grille backed by an acoustically transparent and water repellent fabric.

  • Product Features

    System data

    Max. sound pressure1

    with D40/D80/D90/40D                                                    137 dB

    Frequency response (-5 dB standard)                               37 Hz - 110 Hz

    Frequency response (–5 dB INFRA mode)                        35 Hz - 85 Hz

    Cabinets per D40/D80/D90/40D                                       4



    Loudspeaker data

    Nominal impedance front/rear                                         8/16 ohms

    Power handling capacity front (RMS/peak 10 ms)           700/1500 W

    Power handling capacity rear (RMS/peak 10 ms)             400/800 W

    Splay angle settings                                                          0°and 2.5°

    Components                                                                     1 x 18" front LF driver

                                                                                              1 x 12" rear LF driver

    Connections                                                                      NLT4 F/M



    Dimensions / weight

    Dimensions (h x w x d)                                                      565 x 700 x 7732 / 898 mm

                                                                                              22.2 x 27.6 x 30.42 / 35.4"

    Weight                                                                               66 kg

                                                                                              146 lb



    (1)1 m, free field, SPL max peak, test signal: pink noise with crest factor 4, one speaker driven

    (2) dimensions without wheels
