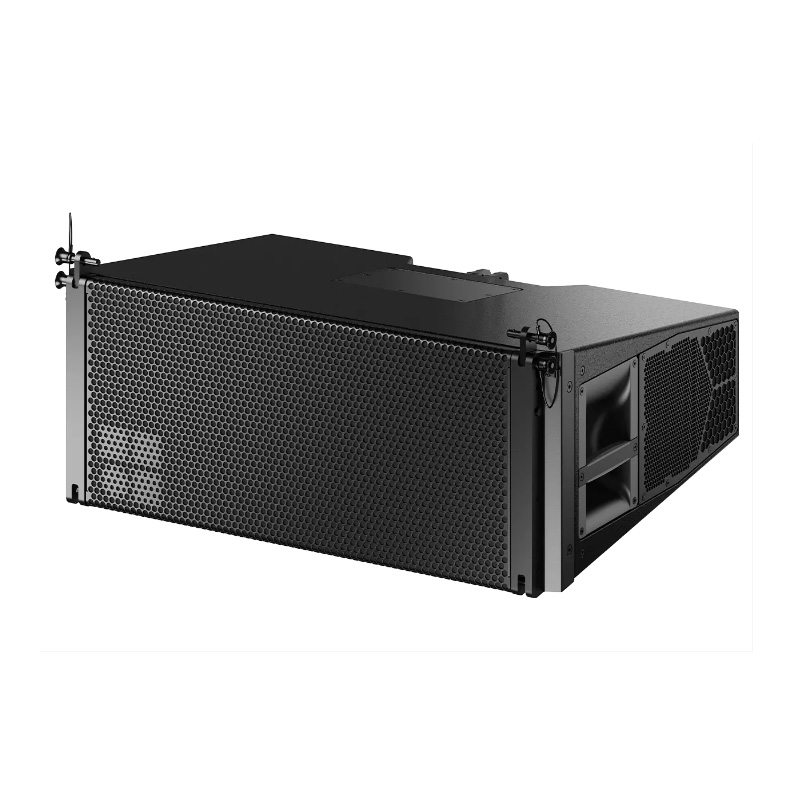

  • XSL12 loudspeaker
  • General Description

    The XSL12 is a mobile specific line array module purposefully designed for medium scale sound reinforcement. It can also supplement GSL and KSL Systems as fill and delay. Up to twenty-four / twenty-two cabinets in compression or tension mode from XSL Flying frames and up top twelve cabinets from the smaller XSL Mounting frames can be flown in vertical columns to produce a 120° constant directivity dispersion pattern in the horizontal plane. The XSL12 houses two 8” neodymium forward facing LF drivers, two side firing 6.5” neodymium LF drivers, one horn-loaded 6.5” MF driver, and two 1” exit HF compression drivers with 2” voice coils mounted to a dedicated wave shaping device. Due to the patented arrangement of the front and side firing LF drivers, in combination with their specific processing functions, seamless directivity is maintained from 60 Hz to above 18 kHz. Further expanding flexibility and catering for applications where smaller arrays are used and ArrayProcessing is not required, the XSL12 includes the option to link two cabinets in Line or Arc mode. SL-Series’ flying hardware comes with a patented workflow with integrated tension and compression rigging modes, allowing for splay angles between cabinets to be set from 0° to 14° in 1° increments. The loudspeakers are driven actively by two channels of an appropriate d&b amplifier, which provides dedicated processing functions for the front LF and passively crossed-over side LF and MF/HF sections. This component geometry allows the cabinet to produce a perfectly symmetrical dispersion pattern.

    The cabinet enclosure is made from injection molded PC-ABS plastic, and has an impact and weather protected 2K finish. The front and side panels incorporate rigid metal grills backed by an acoustically transparent and water repellent fabric. Each side panel incorporates a recessed handle, with two additional handles provided at the rear.

  • Product Features

    System data

    Max. sound pressure1

    with D40/D80/D90/40D                                                                    140 dB

    Frequency response (-5 dB standard)                                               60 Hz - 18 kHz

    Frequency response (-5 dB CUT mode)                                            90 Hz - 18 kHz

    Cabinets per D40/D80/D90/40D (ArrayProcessing)                         2

    Cabinets per D40/D80/D90/40D (Line or Arc mode)                       4



    Loudspeaker data

    Nominal impedance front LF           8 ohms

    Nominal impedance side LF/MF/HF        8 ohms

    Power handling capacity front LF (RMS/peak 10 ms)                      400/1200 W

    Power handling capacity side LF/MF/HF (RMS/peak 10 ms)          300/850 W

    Nominal dispersion angle (horizontal)                                            120 °

    Splay angle settings                                                                         0 … 14° (1° increment)

    Components                                                                                    2 x 8" front LF driver

                                                                                                             2 x 6.5" side LF driver

                                                                                                             1 x 6.5" MF driver

                                                                                                             2 x 1" exit compression driver with 2" voice coil

                                                                                                             Passive crossover network

    Connections                                                                                     2 x NLT4 F/M



    Dimensions / weight

    Dimensions (h x w x d)                                                                    283 x 700 x 507 mm

                                                                                                            11.1 x 27.5 x 20"

    Weight                                                                                            39 kg

                                                                                                            86 lb



    (1) 1 m, free field, SPL max peak, test signal: pink noise with crest factor 4, one speaker driven
