d&b audiotechnik
  • Yi8 loudspeaker
  • General Description

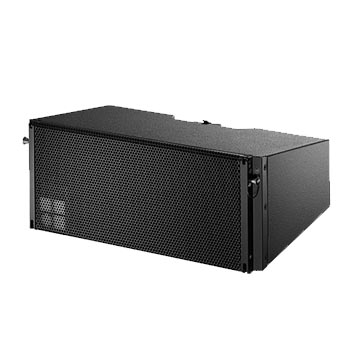

    The compact Yi8 line array loudspeaker is designed for use in vertical columns. The 2-way passive design features two 8” drivers in a dipole arrangement and a centrally mounted 1.4” compression driver with a wave transformer. The Yi8 is the installation version of the Y8 loudspeaker and differs only in cabinet construction, finish and mounting hardware. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These high performance line array modules offer 80° horizontal directivity controlled down to 500 Hz. The mechanical and acoustical design enables vertical arrays of up to twenty four loudspeakers with vertical splay angles from 0° to 14° with a 1° resolution. It can be used in columns of purely Yi8 loudspeakers or combined with Yi12 and/or Yi-SUB cabinets. The loudspeaker cabinet is constructed from marine plywood and has impact resistant paint finish, whilst Weather Resistant and Special Colour versions are available. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Three point rigging hardware is integrated into the loudspeaker enclosure.

  • Product Features

    System data

    Frequency response (-5 dB standard)                54 Hz - 19 kHz

    Frequency response (-5 dB CUT mode)             100 Hz - 19 kHz

    Max. sound pressure (1m, free field)

    with D6/10D                                                         134 dB SPL

    with 30D/D20                                                       137 dB SPL

    with D80                                                               139 dB SPL



    Loudspeaker data

    Nominal impedance                                                            8 ohms

    Power handling capacity LF (RMS/peak 10 ms)                 400/1600 W

    Nominal dispersion angle (horizontal)                                80°

    Splay angle settings                                                            0 - 14° (1° increment)

    Components                                                                        2 x 8" driver with neodymium magnet

                                                                                                1.4" exit compression driver

                                                                                                 passive crossover network

    Connections                                                                         2 x NL4 and screw terminal block



    Dimensions, weight

    Dimensions (H x W x D)                                                      257 x 630 x 375

    mm                                                                                       10 x 24.8 x 14.8 "

    Weight                                                                                  20 kg

                                                                                                 44 lb
