  • Yi subwoofer
  • General Description

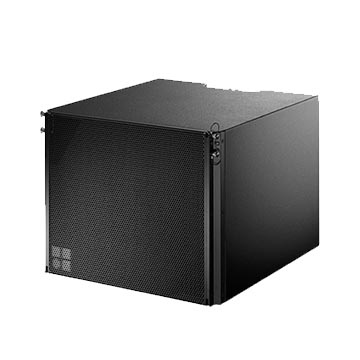

    The Yi-SUB is an actively driven cardioid subwoofer powered by a single amplifier channel. The Yi-SUB is the installation version of the Y-SUB and differs only in cabinet construction, finish and mounting hardware. It houses two long excursion neodymium drivers in an integrated cardioid setup, an 18” driver in a bass-reflex chamber facing to the front and a 12” driver in a two chamber bandpass design radiating towards the rear. The cardioid dispersion pattern resulting from this arrangement avoids the distribution of energy behind the system, providing the greatest accuracy of low frequency reproduction and reducing the energy dispersed into unwanted areas. The Yi-SUB is fitted with three point rigging hardware and can be flown in a column of purely Yi subwoofers, at the top of a Yi array or used in a ground stacked setup. The cabinet is constructed from marine plywood and has an impact resistant paint finish, whilst Weather Resistant and Special Colour versions are available. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam.

  • Product Features

    System data

    Frequency response (-5 dB standard)                       39 Hz - 140 Hz
    Frequency response (-5 dB 100 Hz mode)                39 Hz - 110 Hz
    Max. sound pressure (1m, free field)
    with D6/10D                                                                128 dB SPL
    with 30D/D20                                                              131 dB SPL
    with D80                                                                     134 dB SPL
    Loudspeaker data
    Nominal impedance                                                          8 ohms
    Power handling capacity LF (RMS/peak 10 ms)                600/2400 W
    Splay angle settings                                                           0° and 2.5°
    Components                                                                       1 x 18" driver with neodymium magnet
                                                                                                1 x 12" driver with neodymium magnet
    Connections                                                                        2 x NL4
    Dimensions, weight
    Dimensions (H x W x D)                                                     500 x 630 x 700
    mm                                                                                     19.7 x 24.8 x 27.6 "
    Weight                                                                                49 kg
                                                                                               108 lb
