d&b audiotechnik
  • Bi6 subwoofer
  • General Description

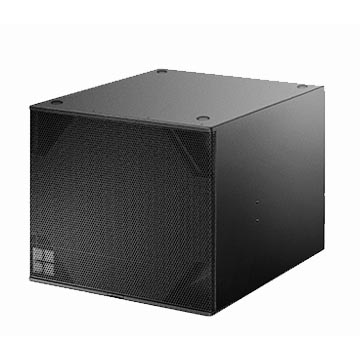

    The Bi6-SUB is a high performance subwoofer designed for ground stacked applications, housing a long excursion 18” driver built into a bass-reflex design. The Bi6-SUB is the installation version of the B6 subwoofer and differs only in cabinet construction, finish and mounting hardware. When three or any multiple of three B6-SUBs are used, they can be positioned in a Cardioid Subwoofer Array with one cabinet physically facing backwards and driven by an amplifier channel with CSA mode selected. This achieves exceptional directivity control in lower frequencies and significantly reduces the energy radiating towards to the rear. The cabinet is constructed from marine plywood and has an impact resistant paint finish, whilst Weather Resistant and Special Colour options are available. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam.

  • Product Features

    System data
    Frequency response (–5 dB standard)                       37 Hz - 140 Hz
    Frequency response (-5 dB 100 Hz mode)                37 Hz - 110 Hz
    Frequency response (–5 dB INFRA mode)                35 Hz - 80 Hz
    Max. sound pressure (1m, free field)
    with D6/10D                                                                128 dB
    with D20/30D                                                              131 dB
    with D80                                                                      134 dB
    Cabinets per amplifier channel                                    2

    Loudspeaker data
    Configuration Installation specific                                high performance subwoofer
    Nominal impedance                                                    8 Ω
    Power handling capacity (RMS/peak 10 ms)              500/2000 W
    Components                                                               1 x 18" driver
    Connections                                                                2 x NL4
                                                                                        screw terminal block

    Dimensions, weight
    Dimensions (H x W x D)                                             490 x 580 x 700 mm
                                                                                       19.3 x 22.8 x 27.5"
    Weight                                                                        38 kg
                                                                                       84 lb
