d&b audiotechnik
  • Y subwoofer
  • General Description

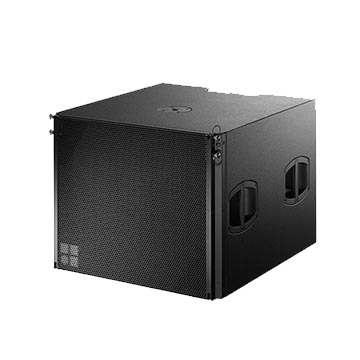

    The Y-SUB is an actively driven cardioid subwoofer powered by a single amplifier channel. It houses two long excursion neodymium drivers in an integrated cardioid setup, an 18” driver in a bass-reflex chamber facing to the front and a 12” driver in a two chamber bandpass design radiating towards the rear. The cardioid dispersion pattern resulting from this arrangement avoids the distribution of energy behind the system, providing the greatest accuracy of low frequency reproduction and reducing the energy dispersed into unwanted areas. The Y-SUB is fitted with three point rigging hardware and can be flown in a column of purely Y subwoofers, at the top of a Y array or used in a ground stacked setup. The cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam, whilst the side panels incorporate two handles with four wheels mounted to the rear. An optional transport lid protects the front of the subwoofer during transit.

  • Product Features

    System data
    Frequency response (–5 dB standard)                   39 Hz - 140 Hz
    Frequency response (-5 dB 100 Hz mode)            39 Hz - 110 Hz
    Max. sound pressure (1m, free field)
    with D6/10D                                                            128 dB
    with D20/30D                                                          131 dB
    with D80                                                                  134 dB
    Cabinets per amplifier channel                                2

    Loudspeaker data
    Configuration                                                          High performance flyable cardioid subwoofer
    Nominal impedance                                                8 Ω
    Power handling capacity (RMS/peak 10 ms)          600/2400 W
    Splay angle settings                                                0° and 2.5°
    Components                                                            1 x 18" driver with neodymium magnet
                                                                                    1 x 12" driver with neodymium magnet
    Connections                                                            2 x NLT4 F/M
    optional                                                                   2 x NL4 or 2 x EP5

    Dimensions mm (H x W x D)                                    500 x 630 x 700
    Weight kg                                                                52
    Dimensions inch (H x W x D)                                   19.7 x 24.8 x 27.5
    Weight lb                                                                 115
